Accessories
At LUXOR, we are always interested in hearing any feedback from our sales partners and end customers. If you have ideas about new functionalities, accessories or applications that you would like to see implemented in our products, then please do not hesitate to share them with us.
Standard sample holder
The LUXOR standard sample holder is delivered as a standard accessory with every LUXORAu or LUXORPt sputter coater.
It can simultaneously hold up to 7 x Ø 12.5 mm or 3 x Ø 25 mm pin stubs. It has an easily accessible sample preparation surface and is supported by 3 elastomer feet, ensuring good stability. There is no need to reposition the prepared specimens.
It is therefore ideally suited for flawless sample preparation. All the pin stubs are securely fastened so they do not fall out when placed in the coater.

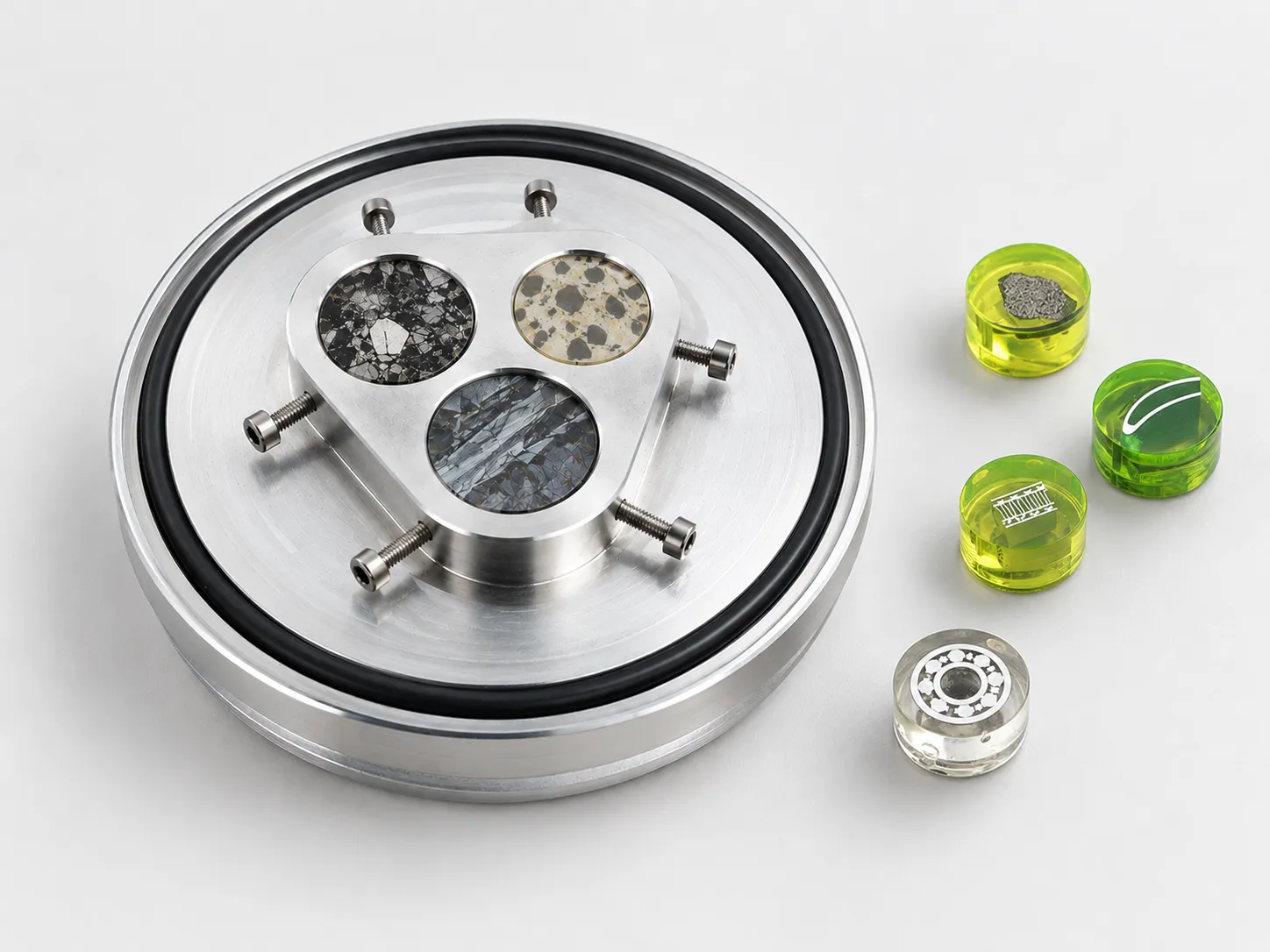

Sample holder for resin embedded samples
The LUXOR sample holder for resin embedded samples can hold all types of samples that are resin embedded with a diameter from 25 mm to 40mm and a height from 10 mm to 50 mm.
The samples are held in place by 3 screws. This same setup can also be used to coat large or uneven-shaped samples that cannot be mounted directly on a stub.
SAMPLE HOLDER FOR CYLINDRICAL SAMPLES
The LUXOR sample holder for cylindrical stubs is designed to hold cylindrical stubs of diameters 9, 12 and 25 mm. These stubs are often used in HITACHI and JEOL electron microscopes. This holder has 3 positions in which different combinations of 9, 12 and 25 mm diameter cylindrical stubs can be coated.
SPUTTER TARGETS
LUXOR targets are different from any other targets in the market. The metal disk (gold – platinum – gold/palladium) is pre-mounted on a push-fit holder. So instead of having to replace a thin fragile metal disk, you can simple push the LUXOR target into place. No need for screw-drivers or other special tools.
Learn more about LUXOR targets in our FAQ
- Pre-mounted targets
- Perfect electrode contact
- Longer target lifetime
- For use in air or argon
- No need for screw-drivers or other special tools. Watch the tutorial to replace a target here
LUXOR gold target
Gold target Ø 30 mm, thickness 100 µm (99,999% purity) for use with both LuxorAu and LuxorPt
LUXOR GOLD-PALLADIUM TARGET
Gold/palladium target (Au 80% – Pd 20%) Ø 30 mm, thickness 100 µm for use with LuxorAu and LuxorPt
LUXOR platinum target
Platinum target Ø 30 mm, thickness 100 µm (99,999% purity) for use with LuxorPt
